Suction wells are intended for fuel draining platforms at filling stations. There are two types of suction wells: without a pump, for underground containers, it is used at fuel draining from a petrol tanker by gravity flow, and supplied with a pump when fuel is drained into an above-ground container.

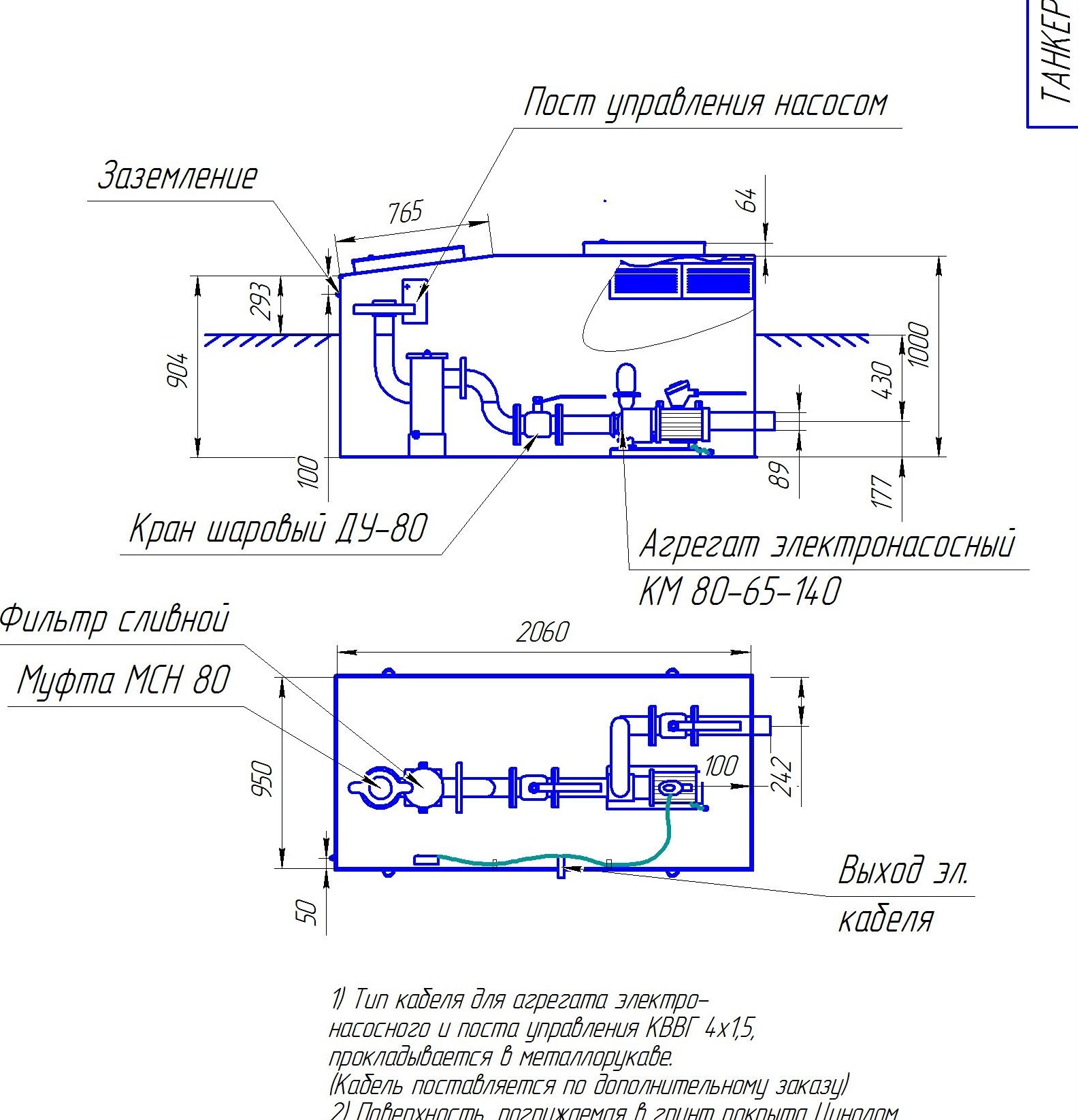

To connect a petrol tanker to the suction pump, a standard outlet coupling is used. Through a standard coupling fuel passes into the filter and further the fuel flows to a container through a flame arrestor and locking accessories (ball valves). Additionally the well can be equipped with an electromagnetic valve to stop fuel drainage in case of the container overfilling.

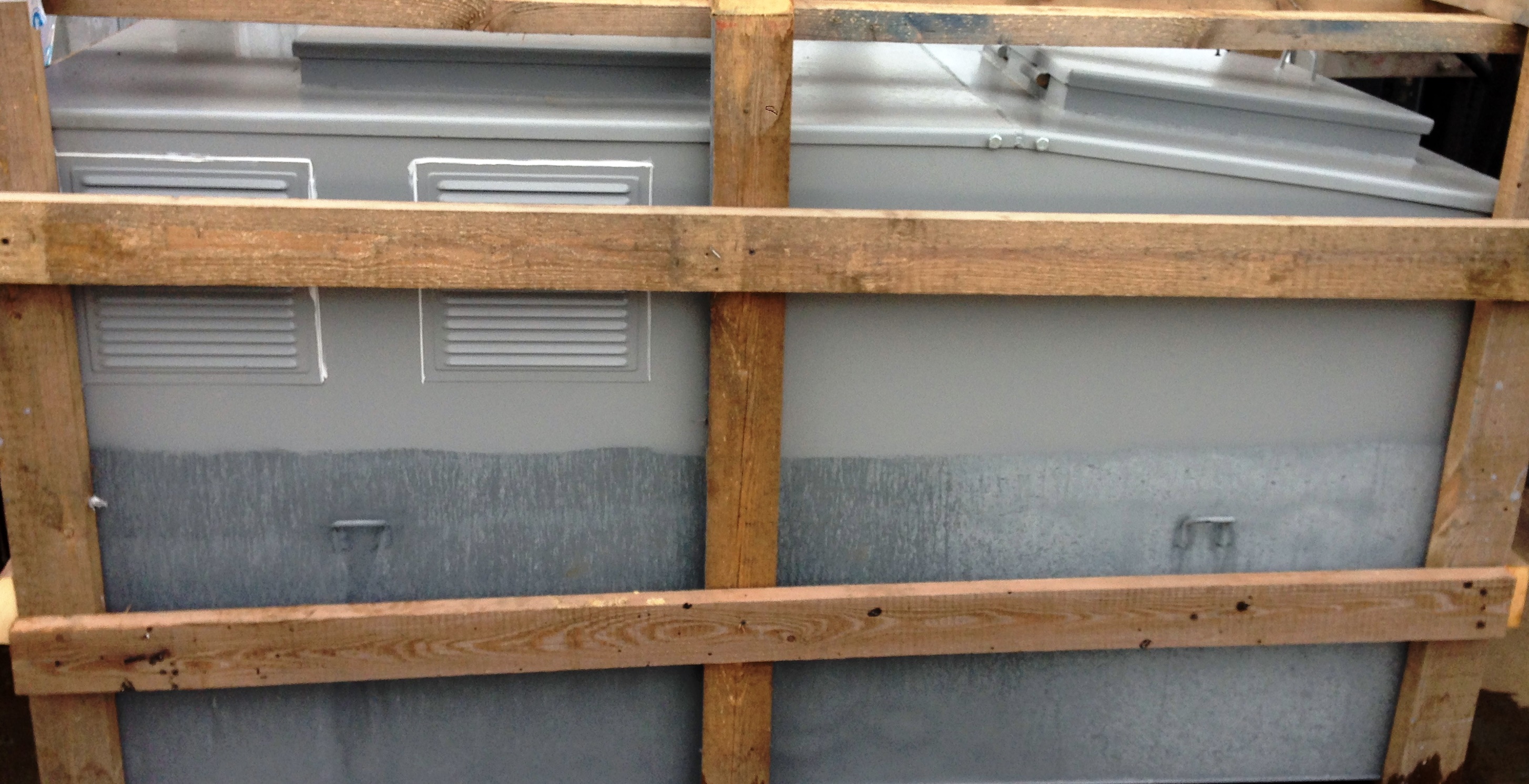

The suction well is equipped with a pump of the type KM, KMS, ASVN, ASTL and the control board. Suction wells are manufactured in three options, one, two or three drain lines. The upper part has hatches, lateral walls are equipped with air gratings.
The suction well is manufactured in its standard version or in compliance with the customer’s technical requirements. The well can be made from the steel 20 or 09G2S and painted with base coat. A part intended for landing into ground is painted with anti-corrosion finish.
