Performance 100 lpm, voltage 220 V (by order 380 V). The mini dispenser TANKER 100 is intended for pumping and metering diesel fuel with the viscosity 2 — 5.35 cSt at the temperature -40 to +40 0С. The dispenser is intended for motor transport and special equipment fueling.
This dispenser peculiarity is that it uses the pump TANKER-100 with improved characteristics. The performance, pressure, vacuum and head are higher than those characteristic for the pump TANKER 80 and its counterparts from other manufacturers. The pump characteristics allowed using various component parts in TANKER-100, and this provides for additional operation advantages. The pumps TANKER are self-priming and allow using a dispensing valve with automatic shutdown.
Availability of such dispenser at the operated facility provides for fast equipment fueling!
Technical characteristics
|
Name |
Mini-dispenser TANKER -100 |
|||
|
Supply voltage |
220V or 380V – specify at the order |
|||
|
Pump performance |
Up to 100 lpm |
|||
|
Pressure |
Up to 2 atm |
|||
|
Operation safety and temperature |
IP 55, -40 + 60 |
|||
|
Self-priming lift |
Up to 4.5 meters with a reverse valve |
|||
|
Dispensing valve |
Manual TR1610 |
|||
|
Version |
Metal panel with a projection thickness 2 mm, BASE COAT, or a mobile frame from a circular tube |
|||
|
Scope of delivery |
Suction, transparent, armored hose — 2 meters, pressure hose MBS GOST 4 meters. |
|||
|
Net weight |
22 kg. |
23 kg. |
30 kg. |
|
|
Type of mechanical meter and its precision |

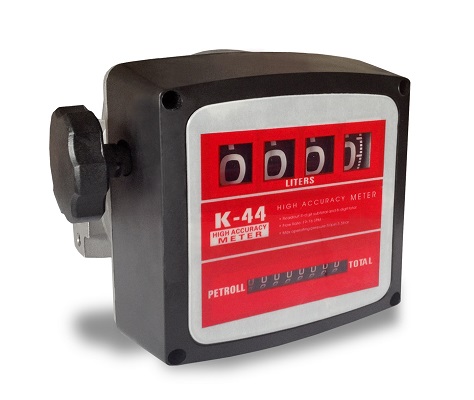

K-44 China 1%- basic variant
|
К33 Italy 1%
|
OGM-A-25China0.5% |
DD-25 0.5% (0.25) State verification |
|
Options additionally to the price: |
||||
|
Valve with automatic shutdown |
||||
|
Cleaned filter 100 micron |
||||
|
Filter 30 micron Cim-Tek series 400 |
||||
|
Separator filter 30 micron or fine filter 5 u, m (the performance decreases to 80 lpm) |
||||
|
Separator filter TANKER-5 25 micron (the performance decreases to 80 lpm) |
||||
|
Metal cabinet with a key |
||||
|
Electronic flowmeter
|
||||
Designation at order
Mini-dispenser TANKER 100-220 A I N F:
- F - Filter, S-Separator
- N - Automatic valve
- I - K33, G-OGM, DD- DD25
- A — Met. Panel, 3-Cabinet, C-Frame
- 100-220 — 220 V or 380V
